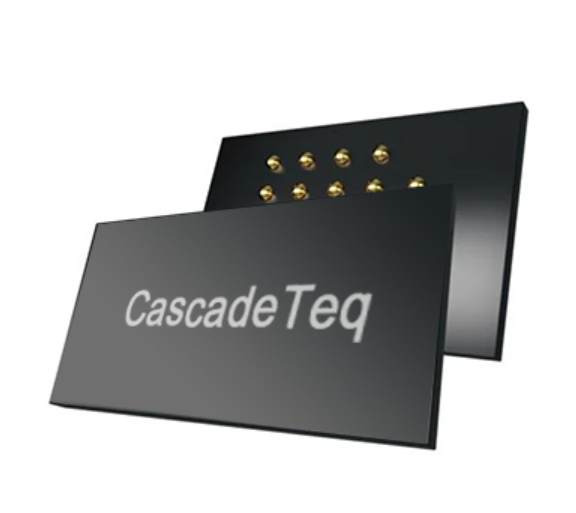

With the rapid development of domestic semiconductors,Cascadeteq has launched a domestic PSRAM product-CSS 1604SS,which has attracted much attention with its solid technical accumulation.As a 16Mb four-channel SPI pseudo SRAM chip,Cascadeteq domestic PSRAM chip CSS1604SS adopts QSPI and LPC interface design,which greatly reduces the number of pins while maintaining high-speed reading and writing ability,and provides a more flexible storage scheme for embedded devices with limited space.
1.Overview of Cascadeteq domestic PSRAM chip QSPI LPC pSRAM model CSS1604SS.
CSS1604SS is a 16Mb four-channel SPI pseudo SRAM chip,which focuses on two core advantages of high-speed operation and low pin count interface,and has strong hardware adaptability.Cascadeteq PSRAM chip products are equipped with four SDR input and output pins,which can flexibly switch between SPI serial peripherals and QPI four peripherals.The peak working frequency can reach 144MHz,and with 84MHz linear 512 burst operation capability,it can efficiently handle the data reading and writing requirements of various terminals.All instructions,addresses and data signals of Cascadeteq domestic PSRAM chip are latched by clock pins,which is stable in operation and strong in anti-interference.It is the preferred storage scheme for low-power portable devices,smart wear and Internet of Things terminals.
2,Cascadeteq domestic PSRAM chip QSPI LPC pSRAM model CSS1604SS features.
Different from the traditional memory chip,this domestic psram chip is equipped with an autonomous seamless self-management refresh mechanism,which greatly simplifies the design of terminal master control program and reduces the power consumption and operating load of equipment without the need for DRAM refresh support from the system host.At the same time,the built-in on-chip voltage sensor can automatically complete the initialization and calibration.When the power supply voltage is stable in the standard range,it only needs 150us adaptation period and simple reset operation to enter the normal working state,with stable power-on and low failure rate.
3.Parameter configuration of Cascadeteq domestic PSRAM chip QSPI LPC pSRAM model CSS1604SS.
Cascadeteq's domestic PSRAM chip CSS1604SS is designed with single power supply,and its working voltage range is 1.62 V-1.98 V.The storage architecture is 2M×8-bit addressing,with a page size of 512 bytes.It supports multi-specification burst length switching of 16/32/64/512 bytes,and can flexibly switch the wrap length through software reset to adapt to different data transmission scenarios.In terms of temperature adaptation of Cascadeteq's domestic PSRAM chip,the standard operating temperature range is-40℃to+85℃,and the extended temperature range can reach+105℃,which has excellent adaptability in high and low temperature environments.The power consumption performance is equally bright,and the typical standby current at 25℃is only 20uA,and the standby power consumption can also be accurately controlled under high temperature conditions,fully meeting the use requirements of various terminals for long battery life.
Ramsun is a chip technology company with more than 15 years of industry experience,integrating R&D,sales and service.We have long supplied domestic PSRAM chips such as OPI pSRAM,QSPI pSRAM and UHB pSRAM of Cascadeteq,with low power consumption,superior performance and affordable price.If you need it,please feel free to call us.
Keywords:PSRAM
